3D Bow Leg Hopper


| Back to home page | 3D Bow Leg Hopper home page |

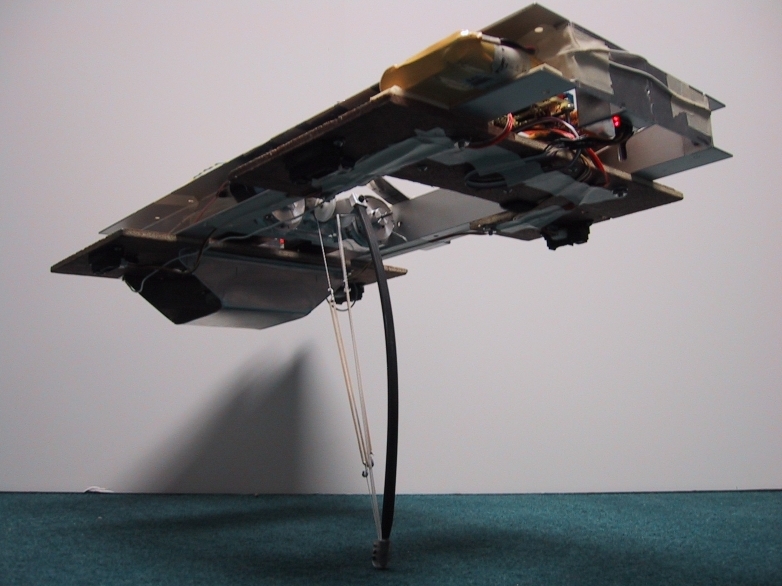

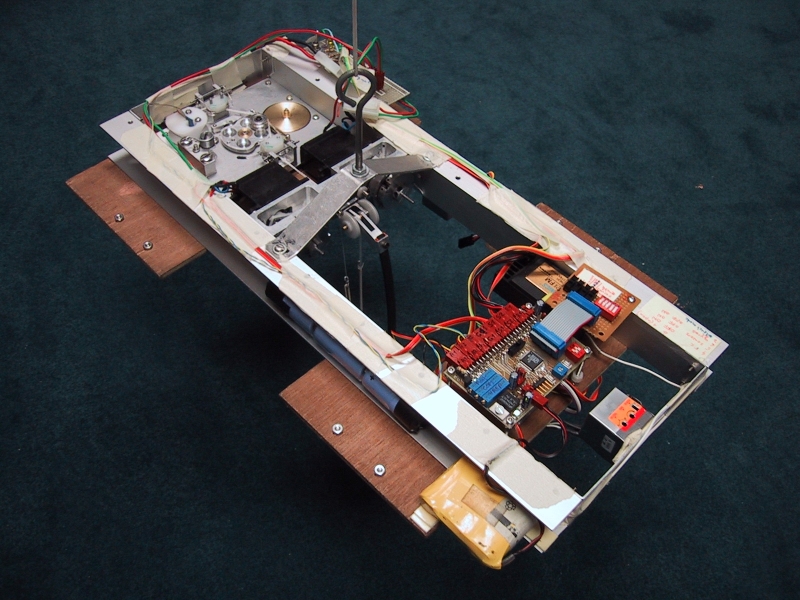

Version for the first hopping trials (February 2001)

New thrust mechanism based on a quite complex system with a DC motor and a clutch. The processor board has been replaced with a more definitive one based on a SX52 microcontroller and two gyros have been added.

12GlobalFromBelow   Images/5GlobalFromAbove

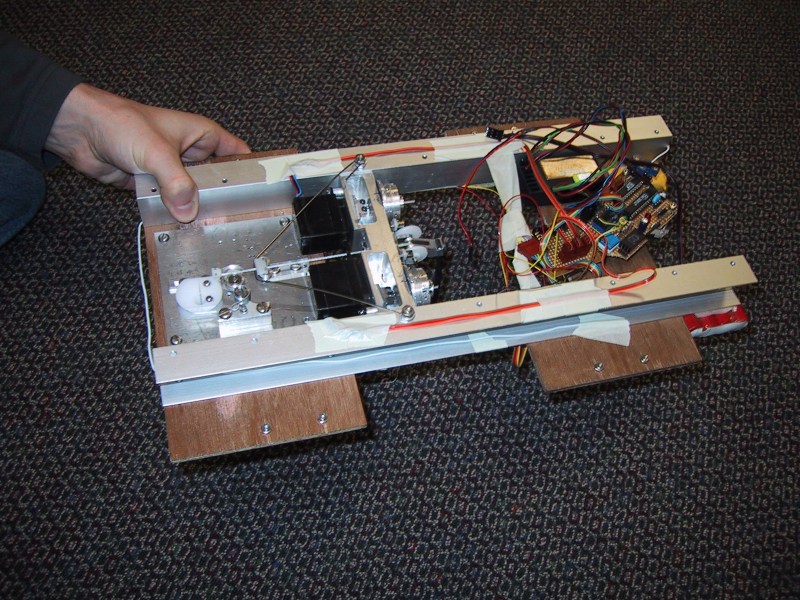

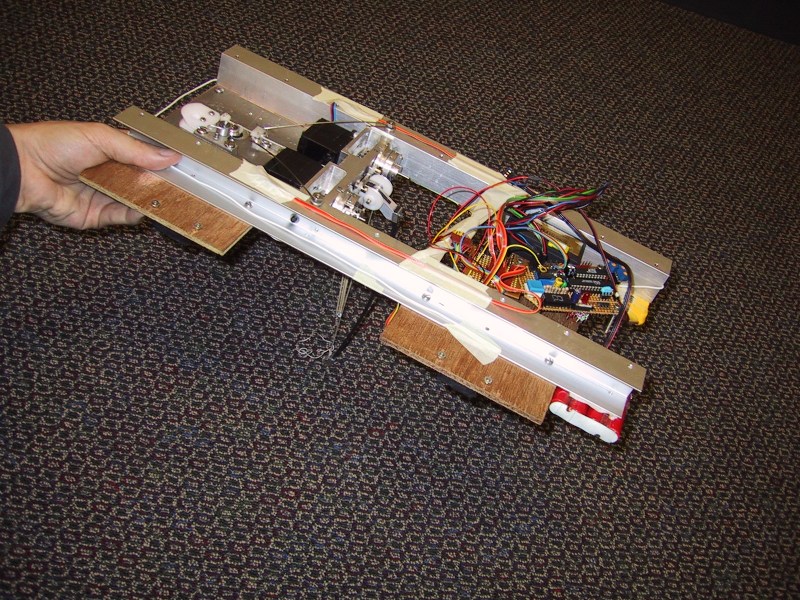

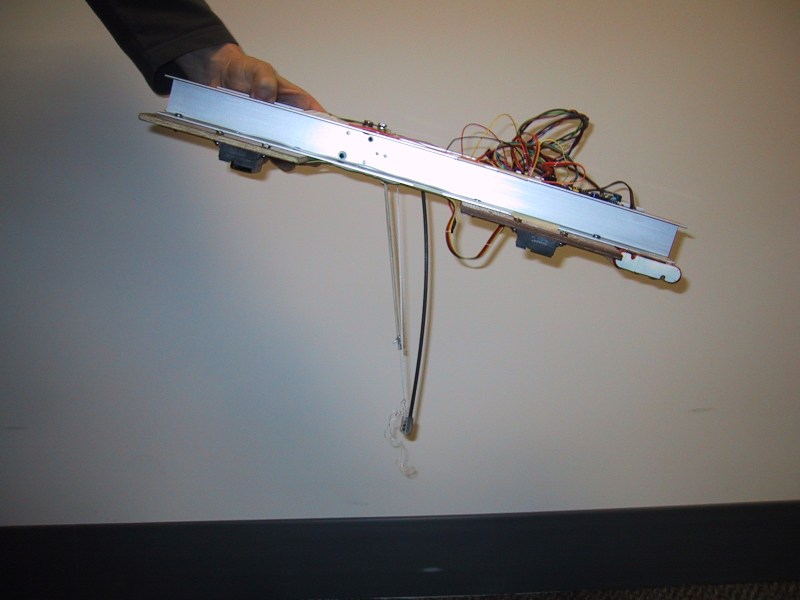

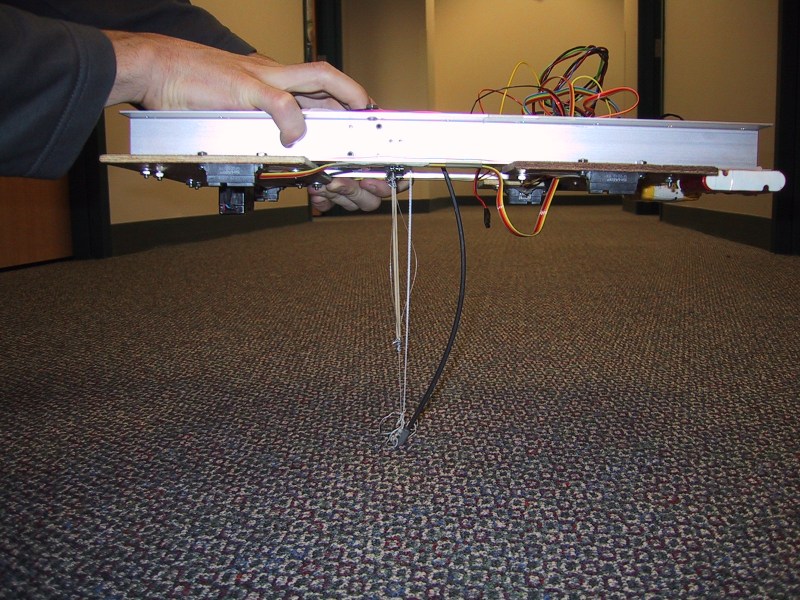

Preliminary version (January 2001)

First thrust mechanism based on a hobby servo and temporary processor board.



Published: 01.02.01 | Last update: 08.03.01
